1983 Bruce Roberts Mauritius 49 - USD 105,000

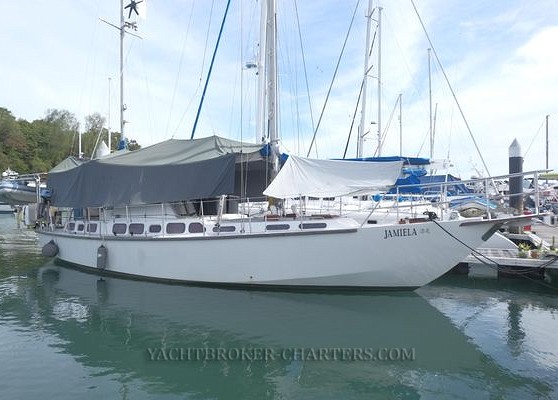

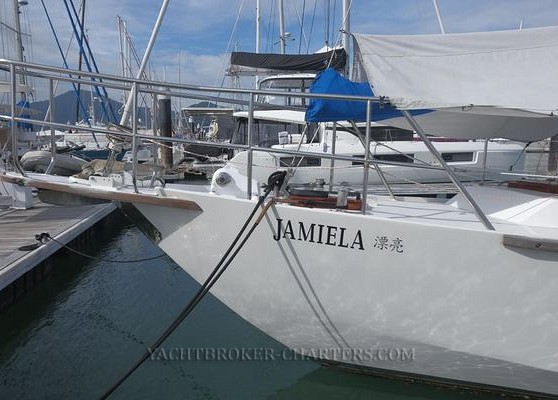

JAMIELA is a (1984) steel Roberts Mauritius centre cockpit pilothouse.  At time of construction in the Balina Shipyard AU, she was extended from 43 ft to (13.1m) to 48.5 ft 14.8m under Roberts Australia supervision. Her present owners bought her here in Langkawi in 2012 and have improved the yacht a great deal.  In 2020 the PERKINS engine was removed and rebuilt to zero hour from the bottom up, new crankshaft and dynamic balance, new camshaft, liners, pistons, new valve set etc.  The engine runs smoothly and flawlessly today and has done a little over 200 hours.  The yacht's genset is also reliable machinery.

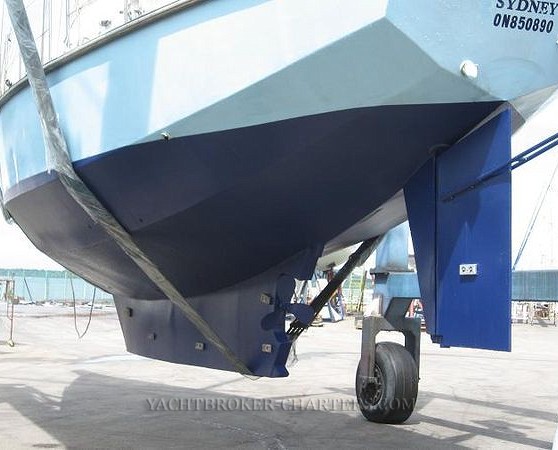

A recent refit in 2021 here in a Langkawi shipyard was centred around the hull.

• Hull Wetted area stripped fully back to steel.
• Hull plates replaced where depletion loss detected / Chain locker stbd side / V fore end of longitudinal and associated bow V plates / Longitudinal beam and limited plate extending aft to fwd head area / Fwd head area / Aft head area / Mast foot to Keel box section port side lower insert repair.
• All through hull weld seams Die Penetrant leak checked.
• Rudder blade assy found to have plate depletion and possible water ingress as visually from the exterior the plate was good. There was no drain / pressure test adapter point located. Test access hole was cut, and water revealed.
• New rudder was fabricated in accordance with Robert’s drawings (onboard) and with the addition of a drain/pressure port it was tested to 35 PSI Lloyds standard pressure.
• Prop shaft and Cutlass Bearing replaced with 2 in longer shaft to improve prop efficiency tip clearance in the keel cutout, which was only 0.5 inch / 2.4% of 15% target. Primary purpose to improve efficiency and low speed handling / response. SUCCESFUL
• Anodes shipset replaced.
• Wetted area re-protected 6 coats of Epoxy Primer INTERTUF 262 Red
• The topsides and deck/superstructure were sanded, some filling and fairing. Primed with JOTUN Penguard HB White.
• Topsides finish JOTUN Hardtop XP, Light Grey.
• Deck and Superstructure finish JOTUN Hardtop XP, white.

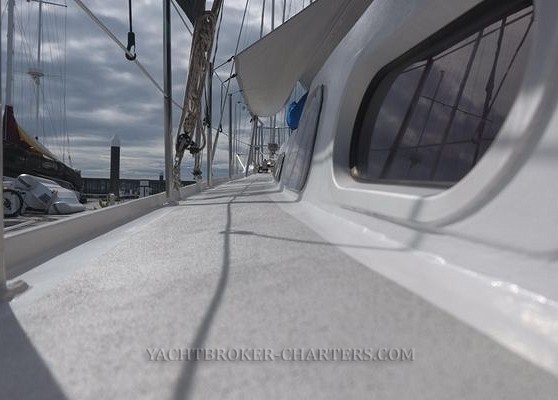

• Nonslip panels finish JOTUN Hardtop XP, Light Grey with International INTERGRIP additive.
• Deck Hatch assemblies refurbished Aft cabin re-glazed and all timber treated.

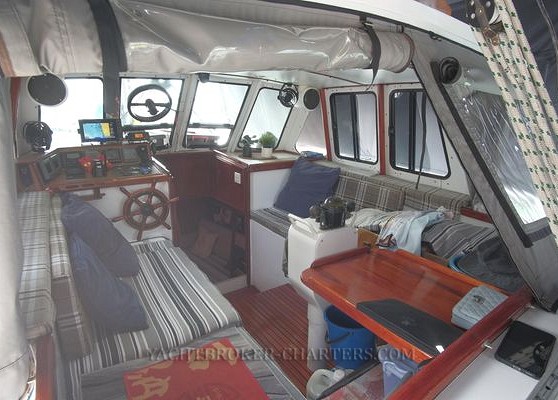

JAMIELA's sail plan is very easily managed.  She has one electric winch backed up by 1 manual on the cockpit coaming. These control from the centre cockpit, main, boom brake furling genoa, self-tacking mizzen and sheets.  The pilothouse has two helms, the larger one at the binnacle may be removed for ease of movement in the cockpit.  The cushioned seats are also long enough to sleep comfortably as 2 Single berths.

JAMIELA presents as a very well cared for, continuously updated steel yacht and will have appeal to liveaboard cruisers. The current owners have lived aboard for 12 years.

Inspection by appointment with YBC.

Boat Name	JAMIELA
Location	Langkawi, Malaysia
Year Launched	1983
Registered	United Kingdom
Designer	Bruce Roberts
Builder	Balina Shipyard, Australia
Length	14.8 m
Max Draft	1.28 m
Beam	3.5 m
Fuel Type	Diesel
Hull Material	Steel
Keel Type	Fin
Cabin Headroom	1.9 m
Displacement	18,000 kg
Engine Brand	Perkins
Engine Model	4-236
Engine Year	1984
Drive Type	Shaft Drive
Total Power	110 hp
Engine Hours	217
Fuel Tank	3 x 700 L (Steel)
Fresh Water Tank	1 x 350 L (Stainless Steel)

Accommodation:

Single Berths: 4

Double Berths: 2

Cabins: 2

Heads: 2

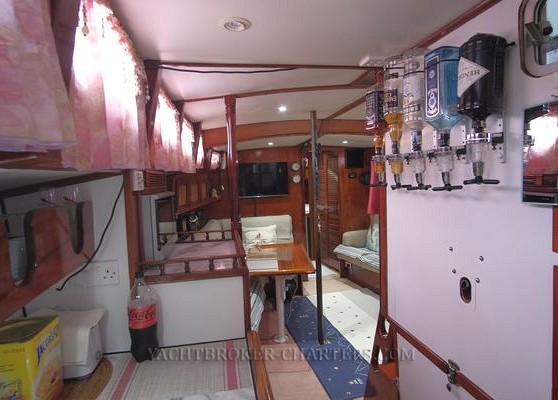

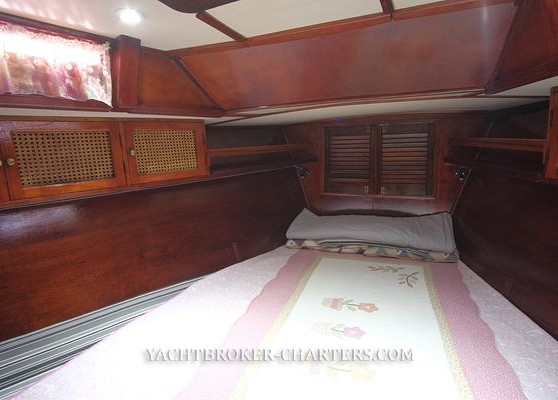

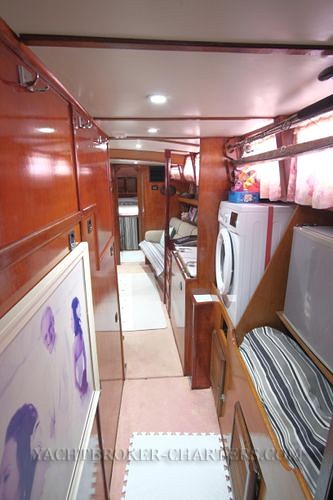

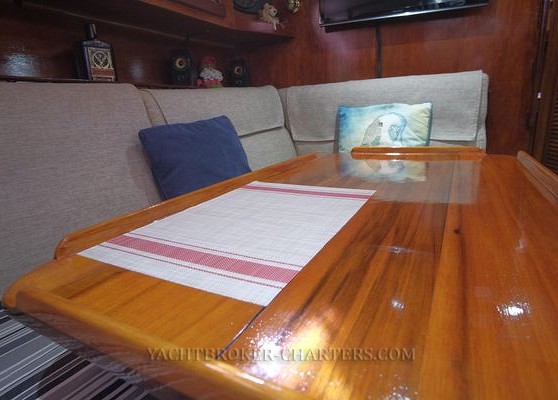

Down below JAMIELA has a spacious liveaboard feel and same level carpeted sole from stem to stern more than six feet headroom is enjoyed throughout.  She is a two cabin, two-bathroom, yacht with a good linear galley on the port side.  Equipped with all mod cons, a good aircon system, washing machine, stereo system etc. The Salon seat foams replaced and upholstered in 2019. 2 cabins and wheelhouse foams replaced and upholstered in 2017.

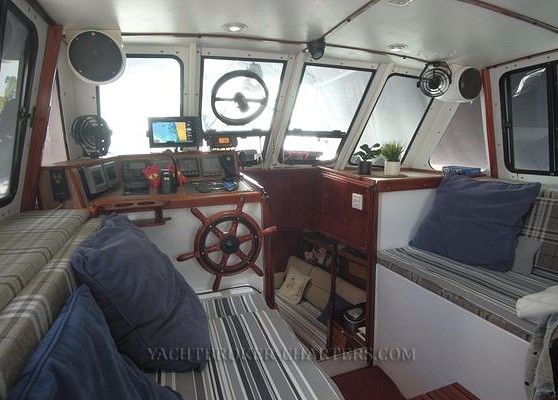

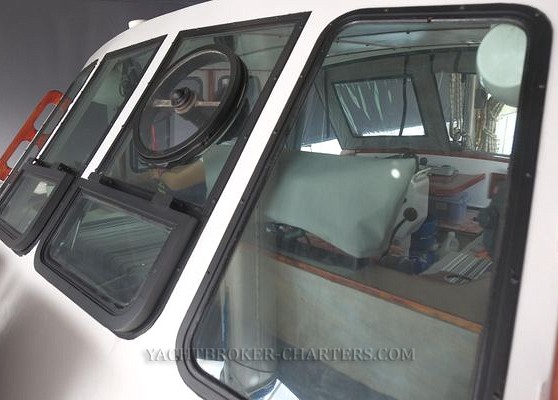

The pilothouse blends with your living space well, offering two more berths and the space may be fully enclosed with the aft dropdowns with integral windowpanes for visibility when underway.

The forward bathroom has been adopted as primary destination by successive owners, the aft is generally used for additional dry storage space with the insertion of a full-size removable shelf.

The machinery on this yacht is very well serviced and reliable. The genset supports refrigeration and aircon when on the hook. The ample electrical power capacity allows for full time operation of all electrical loads without the concern of discharged batteries.

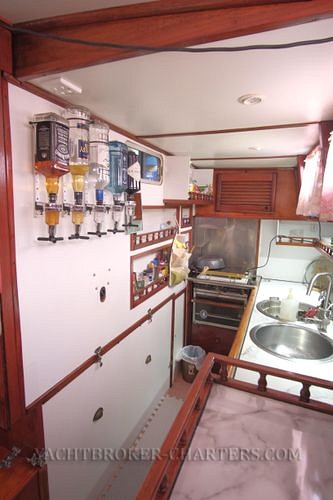

Galley:

• Worksurfaces replaced with attractive new Formica in (2021)

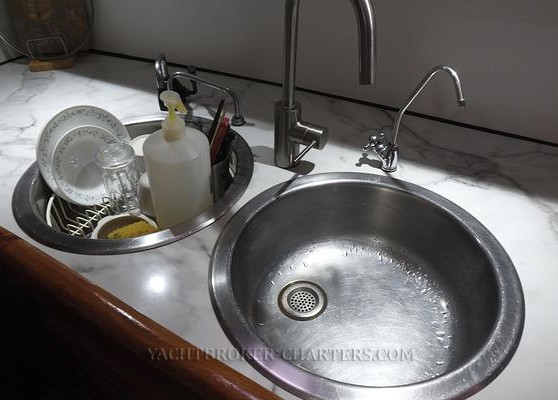

• Deep double sink c/w hot and cold pressurised water
• Separate potable water charcoal filtered tap (2021)
• Foot pump supplied tap for sea water supply
• BROADWATER Twin burner gas hob and oven (no gas supply presently) (1998)
• Gas Detector DVK MONITOR SYSTEM (1998)
• Single electric hob
• 240 VAC 100 litre fridge / freezer 2 top loading compartments, eutectic system (1998)
• SHARP 1200 convection microwave
• 240 VAC TECHNICOMAR SL400 70 Lph water maker (1998)
• 12 vdc / Manual PUR40 7 Lph Emergency water maker (1998)

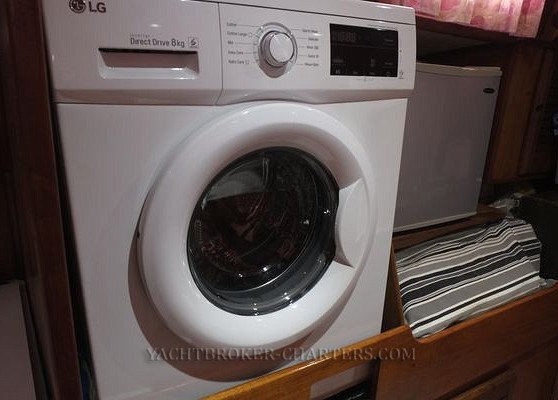

• Washing Machine LG 8kg Front Load (2020)
• Mini Bar fridge 45 Lt (2018)
• Fans 12 vdc x 4. (2015)
• Fans 240 ac x2

Showers:

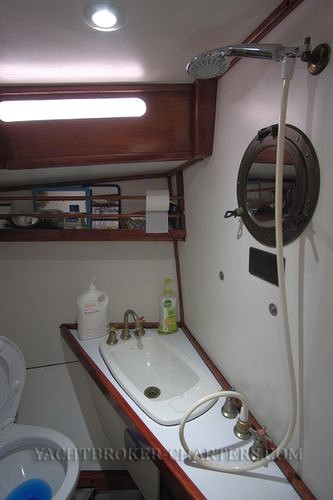

• x2 Fwd / Aft. Both hot and cold pressurised supply
• Aft Lazarette has supply / provision for pressurised cold deck shower.

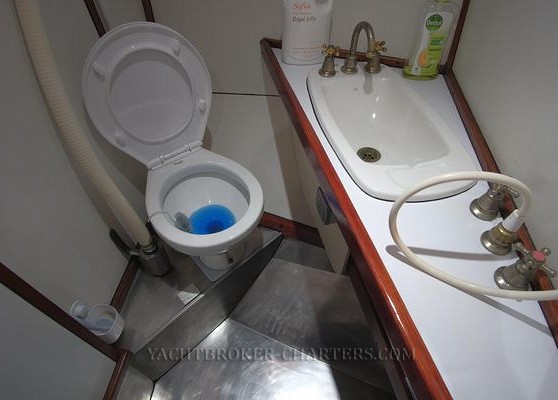

Heads:

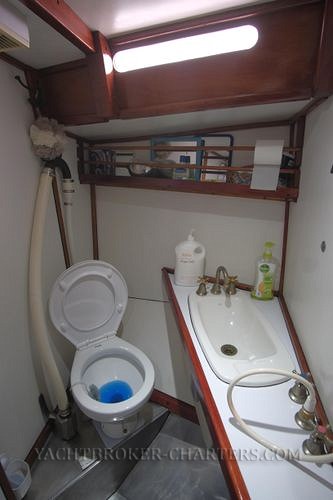

• 1 x TMC 12 Vdc Full Size 29921 in fwd bathroom (2024)
• 1 x manual JABSCO PAR in aft cabin.
• No holding tank.

Machinery:

• PERKINS 4-236 main engine with BORG WARNER VELVET DRIVE gearbox. Total hrs 217 (Zero hrs Rebuild 2020)
• Controls Single Lever Morse with T Handle Engine Fuel Shut off.
• ONAN 6.5 Kva genset 1835 Hrs (1998)
• Air Conditioner 24000 BTU MERMAID SERIES MS24-E2A/S marine air-conditioning unit, Cool and Heat (2022)

Fuel:

• DIESEL Total Capacity 700 Litre in 3 tanks. Range Approx 1200 NM / 5 Kts
• Main Tank Steel 450 Lt
• Secondary / Return Tank Alloy 100 Lt
• Auxiliary Tank SS 150 Lt
• RACOR FILTER

Steering:

• Hydraulic steering, 2 helms. and Auto pilot (2010)
• Emergency Steering. Through Aft Deck. Tiller handle and connector stored below.
• SAYES RIG WINDVANE
• Propellor 3 blade fixed 21 Inch LH rotation

Electronics & Navigation:

• B&G Zeus 2 chart plotter (NMEA2000 backbone integrated with legacy systems Via N2k link) (2020)
• C-map chart loaded in Zeus 2. ASIA CONTINENTAL M-AS- (Last Update 2022)
• SIMRAD AP22 autopilot (2010)
• SIMRAD BR24 3G radar (N2K Link) (2010)
• B&G NAIS 500 Class B AIS System (2020)
• ICOM IC220 VHF radio Callsign (N2K Link) (2020)
• B&G wind instrument (N2K Link) (2003)
• RAYMARINE Depth Sounder (N2K Link) (2009)
• RAYMARINE Log (N2K Link) (2009)
• RAYMARINE rudder angle indicator (2009)
• GARMIN GPS12 (Handheld GPS) (1999)
• MAGELLAN 315 (Handheld GPS)
• GARMIN (Handheld VHF) (2009)
• ICOM IC-M710 HF radio (2009)

Batteries & Electrics:

• AC system is 240 Volt, shore power inlet and cabin outlet sockets UK 3 Pin.

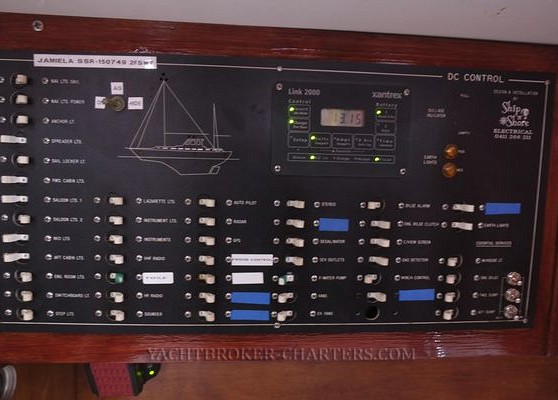

• DC 12 Volt House Battery Bank is managed by XANTREX LINK 2000 with HEART INTERFACE 25 2500 watt inverter / battery charger. (1998)
• House Batteries 4 x GEL SOLAR Total 880 A/H (2020)
• Engine start is 12-volt 2 x 210 A/H sealed lead acid batteries (2024)
• Genset start is 12-volt 1 x 120 A/H sealed lead acid battery (2023)
• Shore power trickle charging of Engine and Genset batteries is by 2 independent FOXUR 5 Amp trickle chargers.
• Wind generator AMPAIR 100-watt c/w controller.
• 2 x Solar Panels 240-Watt output c/w Controller.
• Engine 90Ah alternator
• Engine driven auxiliary 90Ah alternator
• Invertor Power 2500 Watts HEART INTERFACE 25

Mast & Rigging:

• Aluminium, Cutter Ketch Rig with Main LEISURE FURL in-boom furling system.
• Standing rigging reported to be from 2006, regularly inspected.
• Headsail Furler. In 2017 Drum assembly was replaced with updated model (2008)

Sail Inventory:

• 2 x headsails. 1 mounted on PROFURL furler UK-Halsey system (2008)

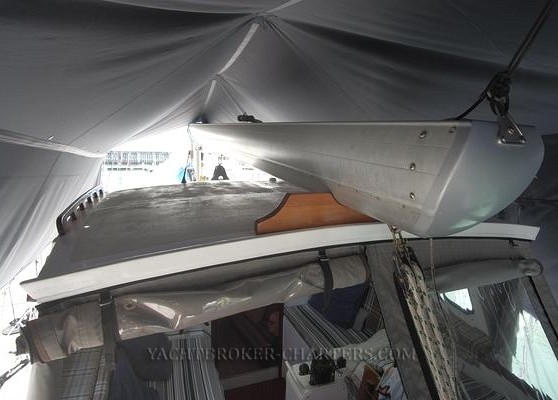

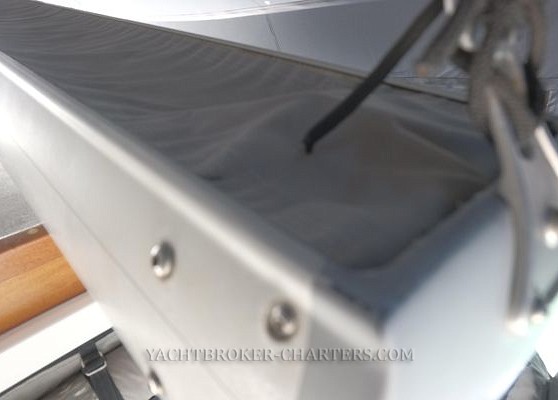

• 1 x main LEISURE FURL OFFSHORE IN-BOOM system with boom brake system (line to cockpit) (2008)
• 1 x staysail self-tacking (1996)
• 1 x mizzen Sail (1996)
• MPS chute (2000)

Ground Tackle:

• MUIR cheetah windlass with deck foot switch. (2012)
• MUIR AUTO ANCHOR 500C Windlass controller / counter (2012)
• Main anchor 27 kg CQR Type 100m x 3/8 inches galvanized chain (2006)
• Standby Anchor 27 kg CQR Type 10m chain and 90 m Rope Rode.

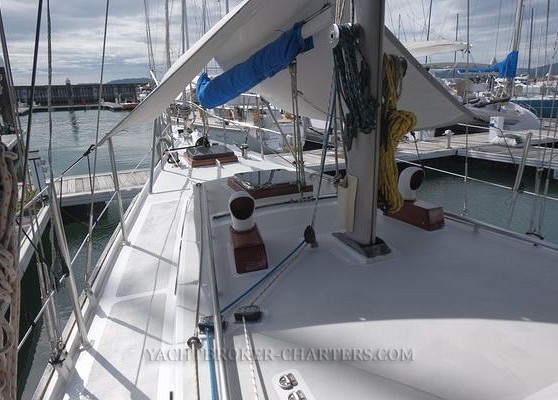

Deck Gear:

• 1 x LEWMAR OCEAN 46 Self tailing electric cockpit winch.
• 1 x LEWMAR manual cockpit winch
• 1 x Main mast Winch Barlow 20-2 speed.
• 1 x Main mast Winch Barlow 19-2 speed.
• 1 x Mizzen mast Winch Barlow 16-2 speed

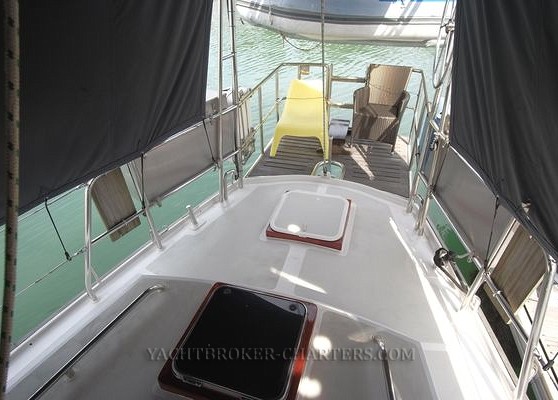

• Extended SS 1.8 metre aft deck platform with full side rails and integral retractable stern ladder. (2015)
• Stainless steel dinghy davits (Incl 2 solar panels) (2015)
• Boom gallows (on wheelhouse roof) (2013)

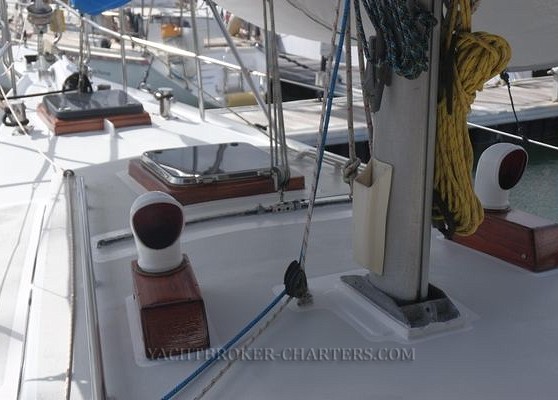

• Dorade vents
• 4 x dive bottles in s/s cages mounted on wheelhouse front.
• Swim ladder. Can be fitted at Port or Stbd side Rail Openings
• Rear Side Rail mounted x 2 Large SS storage / lockable boxes. Port side used for Outboard Fuel Tank (gas when re-install) and other Inflammables. Stbd side Miscellaneous Lines (2015)
• Boat Hooks x 2
• Docking Lines
• Fenders

Safety Gear:

• 3 x adult life jackets Martin Guard 2200 STD (2018)
• 2 X Adult life jackets SOLAS
• 2 x jack lines
• 2 x tethers and Full Body harnesses (2015)
• 1 x Bosuns Chair and Tool bag
• Parachute Anchor and Rigging. Never Used to Date (1999)
• VIKING RESCYOU four-person life raft (OOD)
• PUR40 6 lph manual / 12VDC Emergency water maker

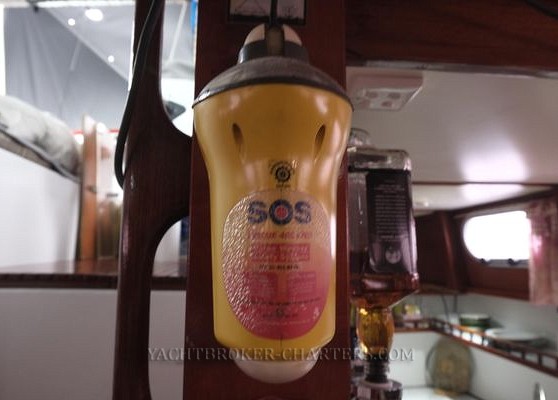

• PAINS WESSEX Rescue 406 EPIRB (OOD)
• Flare pack (OOD)
• LIFESLING overboard Rescue System
• AMAZON Manual main bilge pump
• Engine driven main bilge pump
• RULE Electric main bilge pump (2015)
• Fire blanket
• 2 x ABC 2 kg Powder Fire Extinguishers in Saloon / Galley (2024)

Dinghy & Outboards:

• 3.1m WESTMARINE LITE RIB
• YAMAHA 8hp
• MERCURY 5hp
• Dinghy Collapsable Anchor
• Dinghy SS Wire to Dock Lockable Security Line.
• Dinghy Manual Inflation Pump
• Dinghy Electric Inflation Pump

Covers & Awnings:

• Full width sunshade, SUNBRELLA Type. Top rail to rail, ¾ boat length, offers walking height Stern to Main Mast. Both sides can be rolled up for motoring without removal of the top portion. (2022)
• Bow Full width sunshade, SHADETREE Material ¼ boat length, Mast to Anchor locker, (2020)
