1986 Custom Schooner 85' - USD 300,000

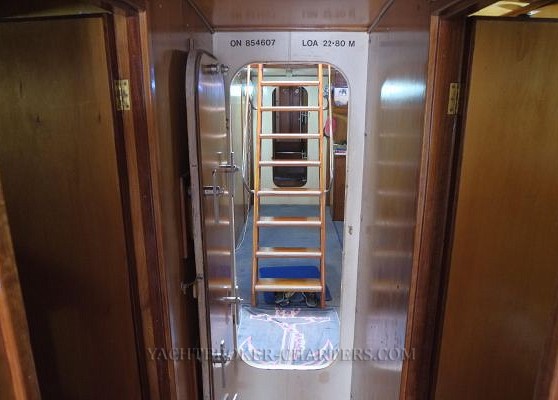

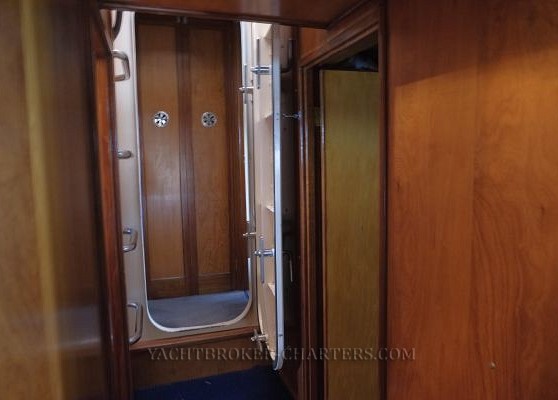

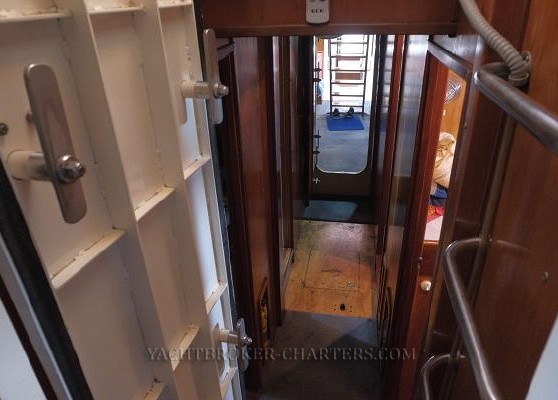

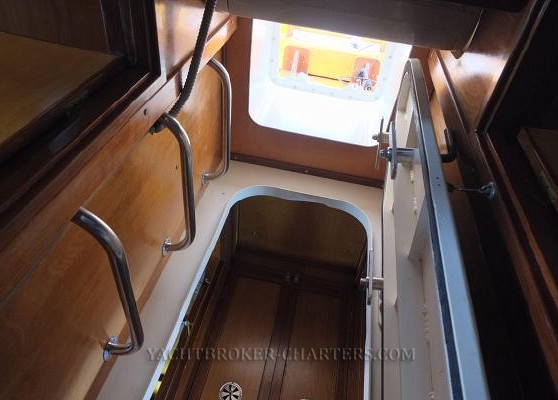

MENTOR is a round bilge steel schooner, the hull design is a copy of the Royal Navy’s sea cadet training brigantine “TS Royalist”.   She was built to Lloyds A1 survey requirements with 4 main watertight bulkheads and a total of 6 watertight doors.

The vessel was built in Fremantle Western Australia by Hoffland Boatbuilders and was completed in time for chartering during the 1987 America’s cup Challenge in Fremantle that year.  Designed for chartering, she did so for five years including three years in the Whitsunday islands on the Great Barrier Reef in Queensland.

MENTOR moved into SE Asian waters some decades ago as home to her original owner and he has enjoyed life afloat for these past years but now sees the time to move to a smaller yacht.  He hands the vessel to a new owner in constantly maintained condition, can help with all manner of technical information, indeed he has written manuals on all aspects of maintaining his yacht from refrigeration to removing the rudder....   In fact the vessel has also spent many years ashore here in Langkawi when the owner was away to work.  The vessel is a truly well maintained vessel and deserves the attention of anyone seeking a charter yacht or expedition type vessel.

Inspection by appointment with YBC.

Boat Name	Mentor
Location	Langkawi, Malaysia
Year Launched	1986
Flag of Registered	Australia
Builder	Hoffland Boatbuilders
Keel	Full
Length	85.30ft
Beam	6.0 m
Length on Deck	22.80 m
Draft	2.60 m (Max)
Displacement	90000 kgs Dry Load
Fuel Type	Diesel
Hull Material	Steel
Engine Make	Volvo
Engine Model	TAMD70D
Engine Year	1990
Total Power	265hp
Engine type	Inboard
Drive Type	Direct Drive
Fuel Type	Diesel
Proprller Type	3 Blade
Propeller Material	Bronze
LOA	85.3ft
Length on Deck	74.8ft
Max Draft	8.53ft
Beam	19.69ft
Fresh Water Tank	1056.69 Gal (Steel)
Fuel Tank	2113.38 Gal (Steel)
Holding Tank	1 X 52.83 Gal (Steel)

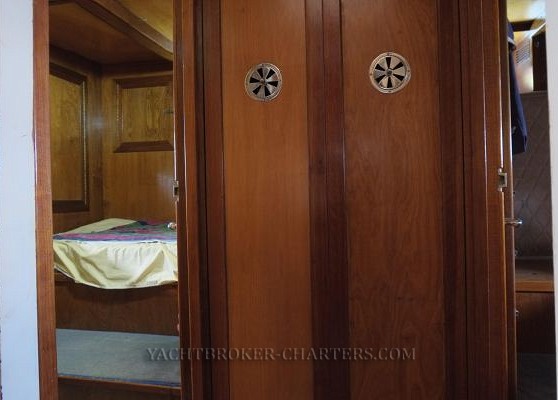

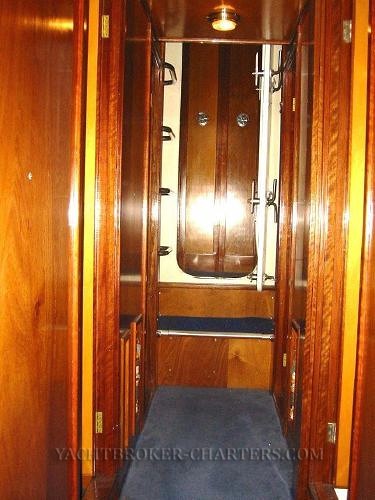

Accommodation:

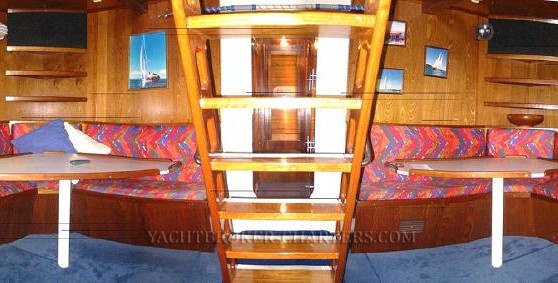

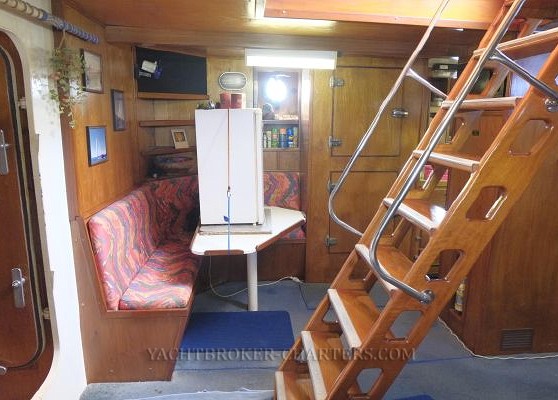

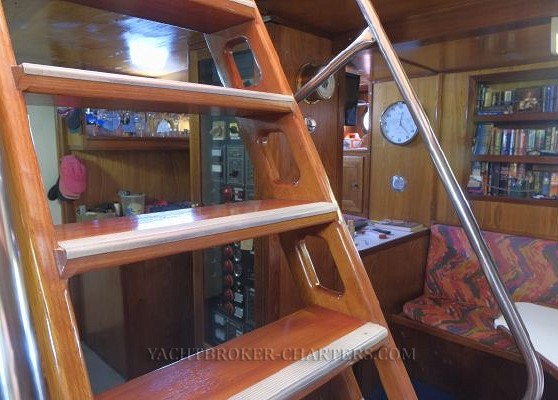

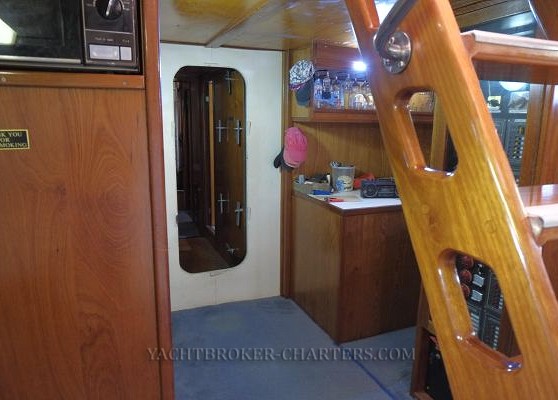

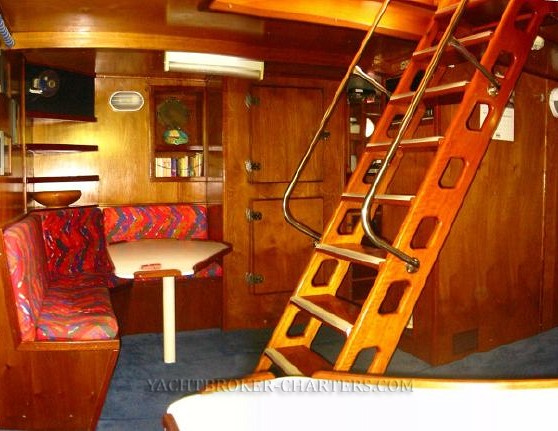

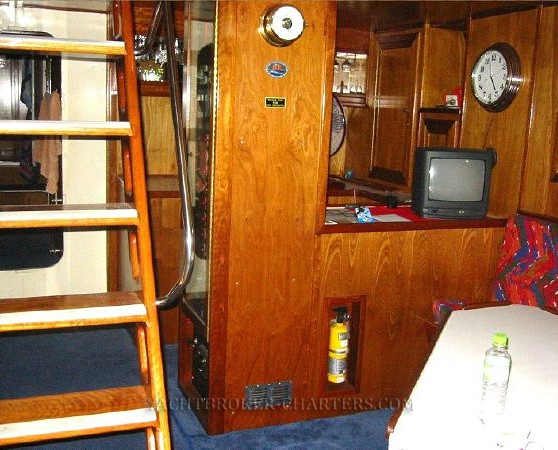

The accommodation is vast. The companionway lands you amidships in the saloon and galley area. Two tables and settees opposite each other for dining and the bar and freezer area to port complements the galley opposite.

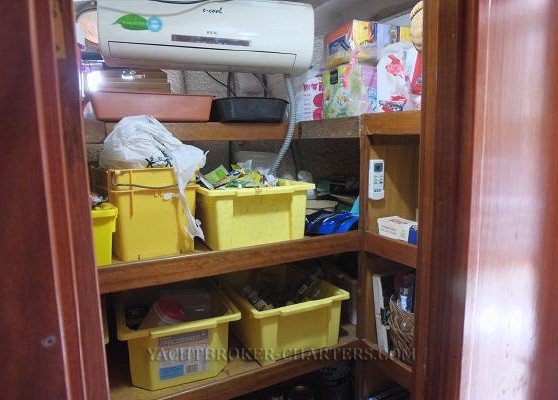

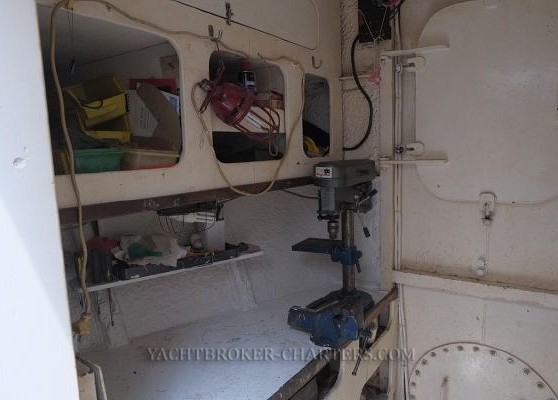

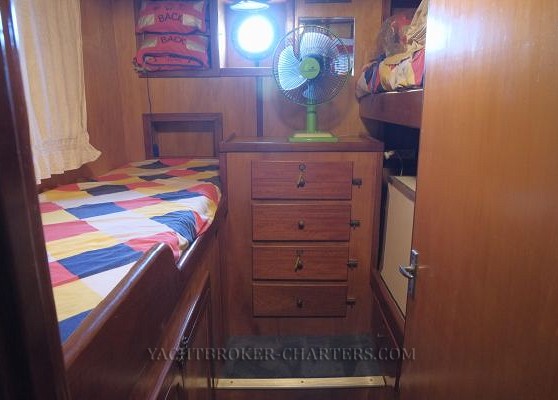

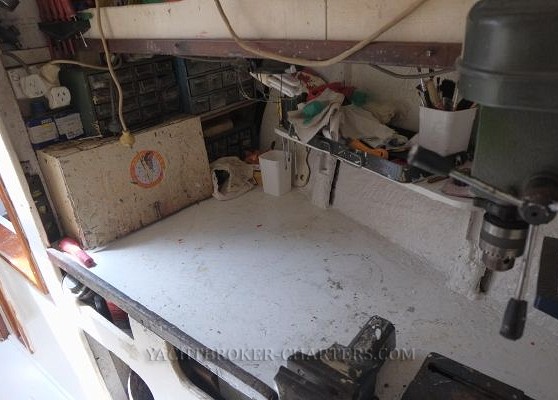

Full forward is the sail bins and workshop, complete with a 1 metre lathe for metal turning, next is the pantry to port and the forward bathroom and then two twin cabins port and starboard.

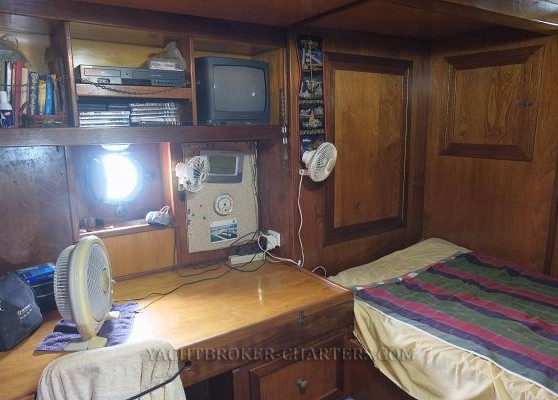

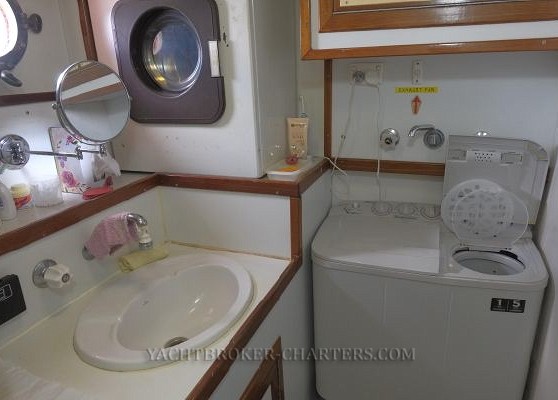

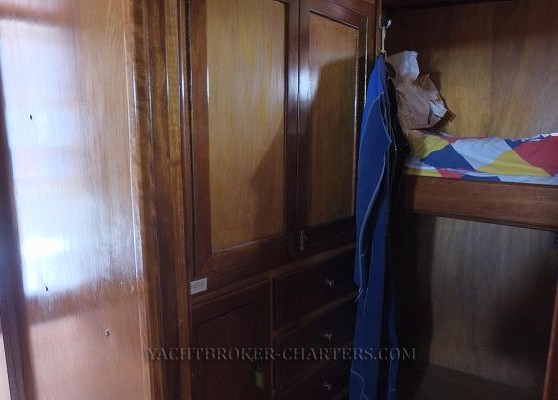

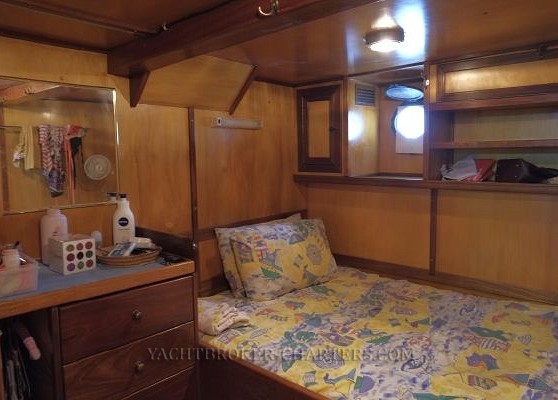

Full aft are the two double staterooms port and starboard, moving forward two triple cabins and then the aft bathroom and laundry to port and a starboard double cabin opposite.

This totals 3 x Double Cabins, 2 x Triple Cabins, 2 x Twin Cabins and two bathrooms

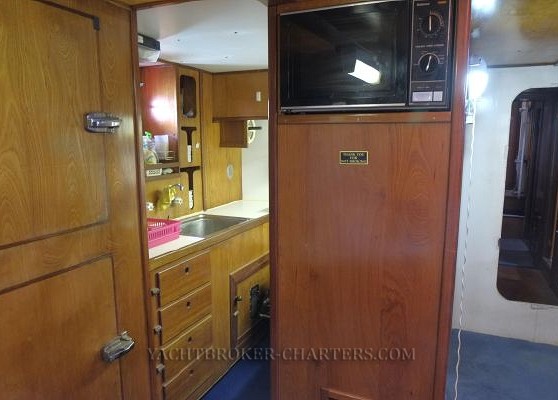

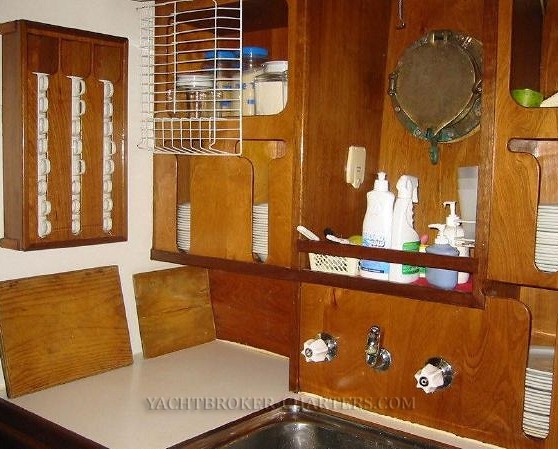

Galley:

• 1 x RODEN MANOR Full Size Stove and Oven (LPG)
• 1 x NATIONAL Microwave Oven
• 1 x Multi Fixture LPG Instantaneous Hot Water Heater
• 1 x 50 litre electric Hot Water Heater
• 5 x 9kg LPG Cylinders
• 1 x 36 Cubic Feet Refrigerator – Eutectic
• 1 x 24 Cubic Feet Freezer – Eutectic

Tankage, pumps and piping systems:

The yacht has good tank capacities... 8000 litres of fresh water, 4000 litres of fuel, a 200 litre grey water tank and a 300 litre black tank.

Pumps:

• Fresh water pump; PAR JABSCO 24VDC 3.7 GPM
• Grey water pump: DAVEY DINAPRIME 240VAC 45 GPM
• Bilge pump; DAVEY DINAPRIME 240VAC 45 GPM
• Manual bilge pumps; 2 x 25 GPM WHALE GUSHERS and 1 x 35 GPM HENDERSON
• Sewage pump; FLYGT C51240VAC 100 GPM
• Fire pump; DAVEY DINAPRIME 240VAC 45 GPM

Heads:

The vessel has two heads.  The forward head is a household type that flushes straight into a main black tank.  The head in the aft bathroom is a marine head.

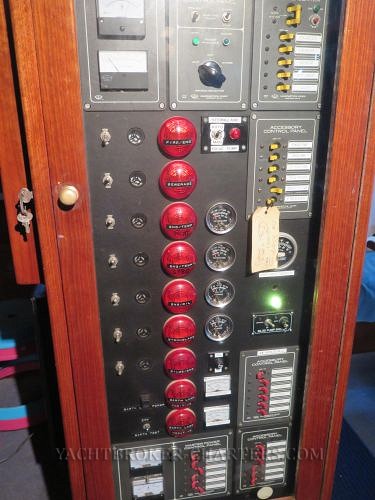

Electrics & Batteries:

The vessel is a 240VAC, 12VDC and 24VDC set up.

24VAC:

• 5.5 KVA DUNLITE alternator direct driven by the RUSTON air cooled diesel engine
• 3.0 KVA Shinyada diesel driven alternator. This is a spare wheel mounted portable unit located in wheelhouse. Never been used.
• 1 x Heavy duty battery charger 40amp 24VDC. (Starting and house batteries)
• 1 x Standard duty battery charger 15amp x 24VDC. (Starting and house batteries)
• Inverter, STATPOWER 24VDC to 240VAC 1500watt
• 1 x 15amp x 12VDC electronic battery charger (radio batteries)
• 1 x 4amp x 12VDC battery charger (electric halyard winch batteries)

12VDC:

• 2 x 12 volt batteries (For electric halyard winch)
• 2 x 12 volt batteries (For HF radio)
• 2 X AMPAIR 100 wind generators
• 2 x solar panels

Electronics & Navigation:

• SEIWA LCD10 T NT chartplotter
• ICOM M710 HF radio
• UNIDEN MC 480 VHF radio
• JRC JMA-2143 Raster scan 32nm radar
• LOWRANCE X-25B sounder/fishfinder
• CCTV deck camera and 14” monitor

Mast/ Rigging:

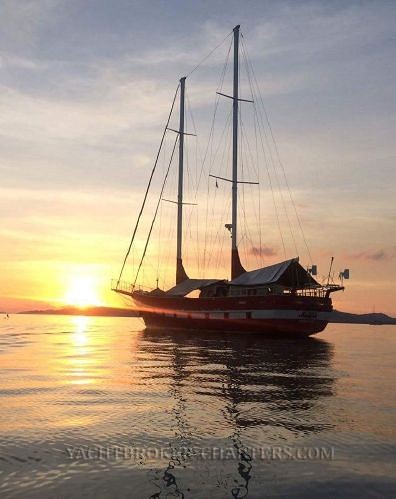

Two white painted aluminium masts, main 75' and forward mast 70'.

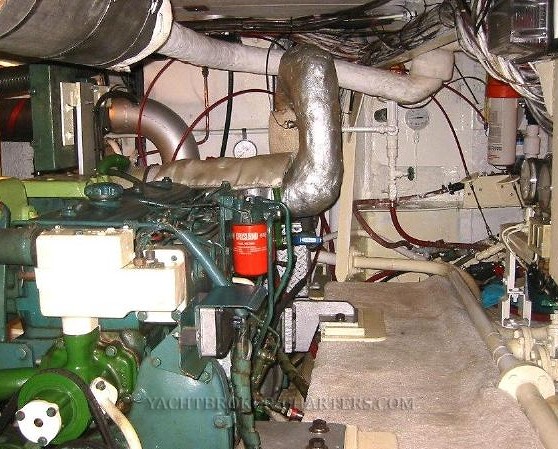

Machinery:

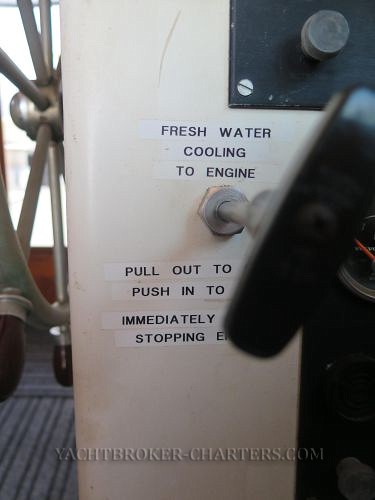

• Main Engine:

  Volvo TAMD70D 285 hp

  Volvo alternator 24V

  SEV 60amp

  MARCHAL

  A28/25   71543002 10 0

  Volvo IMP

• Generators:


  RUSTON Diesel Driving DUNLITE 5.5 KVA Alternator 240 VAC.

  Spare portable 3.0 KVA SHINYADA diesel alternator in wheelhouse.

• Bow Thruster:  Hydraulic bow thruster (25hp) driven from main engine.

• Reverse Osmosis Water Maker:  60 litre/hour. Triplex pump direct coupled to 2hp 240VAC single phase electric motor

• Air Compressors:  2 x 6.5 CFM air compressors 240 VAC for supply of diving air and operation of sand blasting equipment.

Sail Inventory:

• Genoa:

  800 Square feet Permanent Fixture to Profurl P52R Self Furling Gear

• Inner Staysail:

  600 Square Feet Permanent Fixture to Profurl P52R Self Furling Gear

• Forward Mainsail:

  600 Square Feet - Slab Reefed

• After Mainsail:

  700 Square Feet - Slab Reefed

Steering:

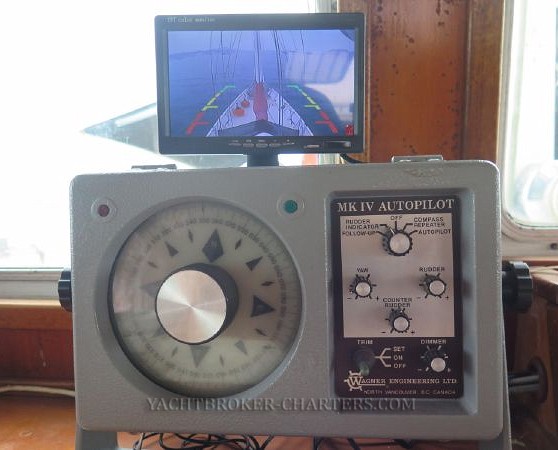

Wagner Hydraulic with Wagner MK 4 Autopilot (24VDC electro-hydraulic)

Ground Tackle:

• MAXWELL H3000 24 VDC.

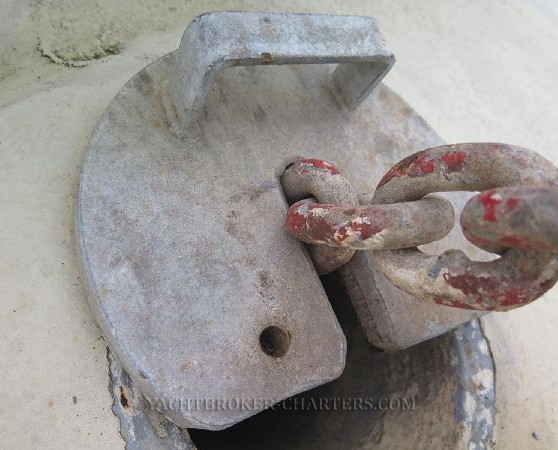

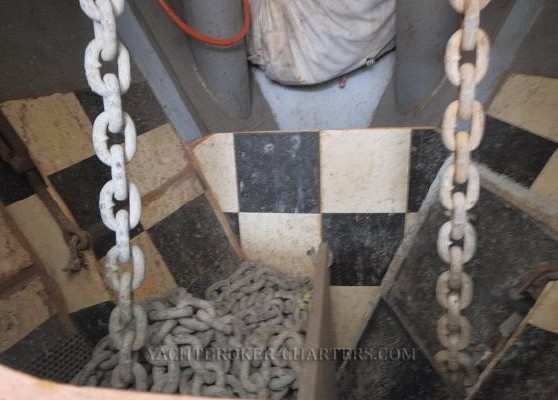

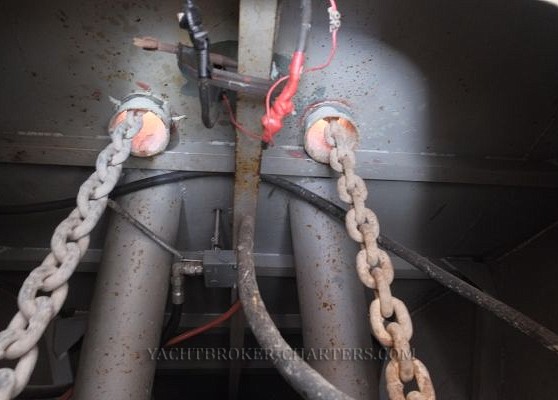

• 2 x 165 lb DANFORTH Anchors with 360 feet of 5/8 inch short link calibrated chain for each anchor.

  Note: This windlass has provision to be changed to hydraulic drive from the bow thruster hydraulic pump driven from the main engine. All connections have already been installed and requires only the winch hydraulic motor to be installed – which is onboard.

Covers and Awnings:

Three separate sun awnings plus one heavy duty awning with rain catching.

Dinghy and Outboard:

12’ aluminium (inflatable lookalike) with 25 HP MERCURY.

Deck Gear

• 2 x BARLOW 34, 2 speed
• 2 x BARLOW 30, 2 speed
• 2 x BARLOW 27, 2 speed
• 2 x BARLOW 23, 2 speed
• 1 x BARIENT 24-41, 2 speed
• 5 x ARCO 44, 2 speed
• 1 x SIMPSON LAWRENCE Electric 750 KG Power Winch (Halyard winch)
